Experimental Setups
Experimental optical feedback setup 1 – 830 nm

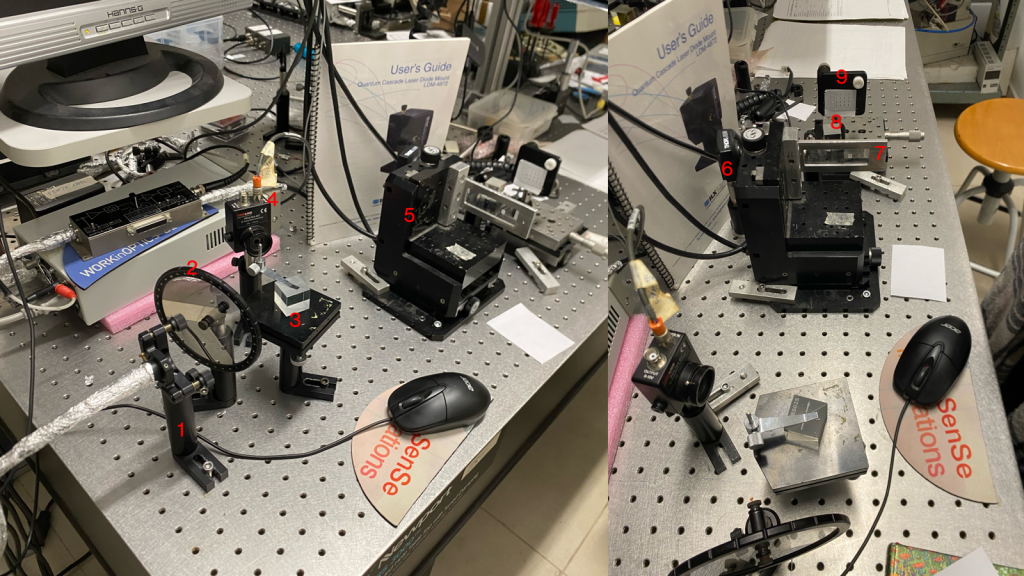

Experimental optical feedback setup. Numbers (1–9) correspond to:
(1) semiconductor laser (830 nm),
(2) attenuator,
(3) first beam splitter (90/10),
(4) external photodiode (PD),
(5) motorised translation stage,
(6) speckle pattern collector (CMOS camera),

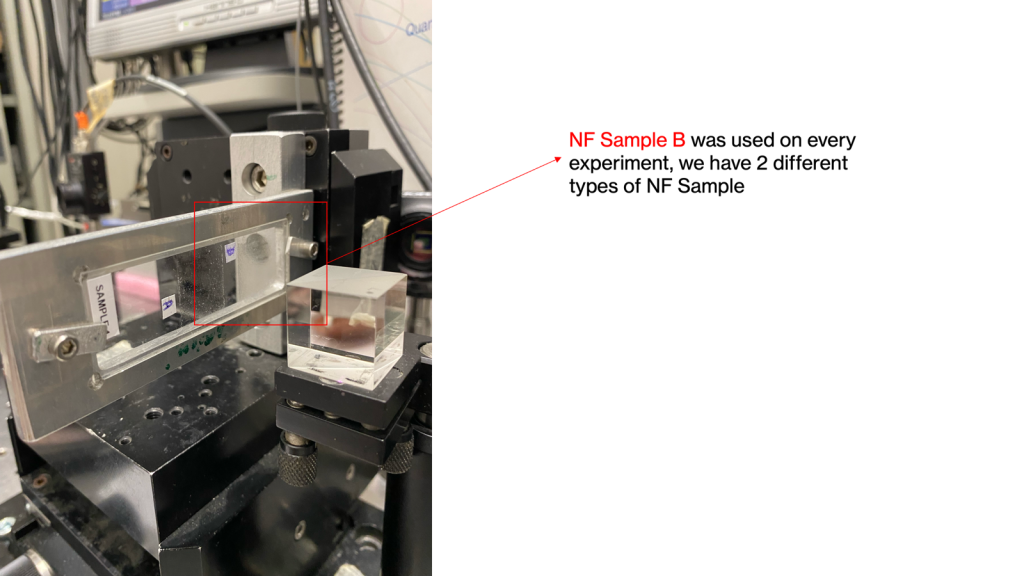

(7) nanofibre (NF) scattering element,
(8) second beam splitter (50/50),
(9) UBARI letter target.
See our paper : Characterization of Nanofiber Bundles for Single Pixel Imaging
https://ieeexplore.ieee.org/abstract/document/11216273

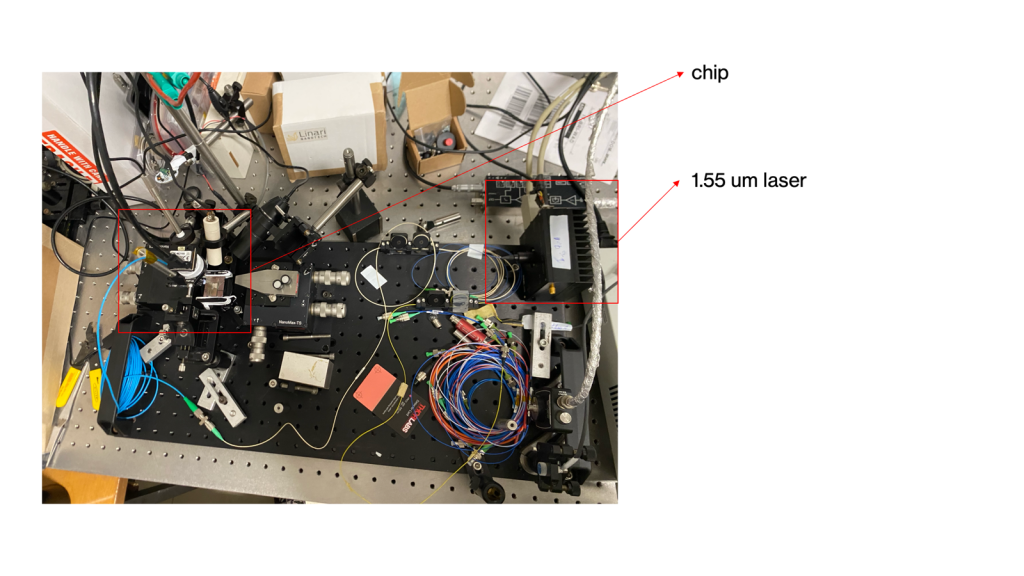

Experimental Setup-2
